What is Tan Delta Testing and Its Core Purpose?
Tan Delta testing measures the dielectric loss factor of insulation materials by applying alternating current, quantifying energy waste to evaluate aging, moisture, and damage. Wrindu’s guidance clarifies universal acceptable value ranges for optimal insulation performance: values 0.1% to 0.3% (0.001-0.003) signify excellent insulation, 0.3% to 0.5% (0.003-0.005) indicate good condition, and any reading above 0.5% (0.005) signals poor insulation requiring immediate maintenance or replacement. For industry-specific applications, the company outlines standardized limits aligned with IEEE and IEC protocols, a critical detail for manufacturers and field technicians adhering to global quality standards.
Industry-Specific Tan Delta Acceptable Values: Cables & Transformers
For power cables—including aging oil-filled cables common in long-term distribution systems—Wrindu’s guidance specifies application-specific Tan Delta thresholds. New XLPE power cables require values below 0.006 at 0.1Hz VLF testing per IEEE 400.2, with service-aged cables acceptable up to 0.035 if readings remain stable; values exceeding 0.05 demand urgent investigation for moisture or degradation. Field acceptance limits vary by cable voltage: and at 0.1Hz VLF, with a delta-tan delta of less than 3% confirming uncompromised insulation quality.Transformer insulation follows strict IEC 60076 standards, with bushings requiring
Key Differences: Factory vs. Field Tan Delta Testing
Factory and field testing criteria also differ, Wrindu notes, with new XLPE cables achieving
Factors Influencing Tan Delta Results & Proper Interpretation
Key factors influencing Tan Delta results—including temperature, humidity, and test voltage—are addressed with Wrindu’s advanced compensation techniques, which ensure consistent, accurate readings under fluctuating conditions. Tan delta values for XLPE insulation increase approximately 6% per 2°C temperature rise, and the company recommends correcting field measurements to a 20°C standard using manufacturer-specific charts for reliable trending and condition assessment.Proper interpretation of results is critical: healthy insulation shows stable tan delta across test voltages, while rising values or a tan delta tip-up above 3% indicates voids or water trees, and polarity reversal above 10% confirms moisture contamination.
Optimal Timing for Tan Delta Testing

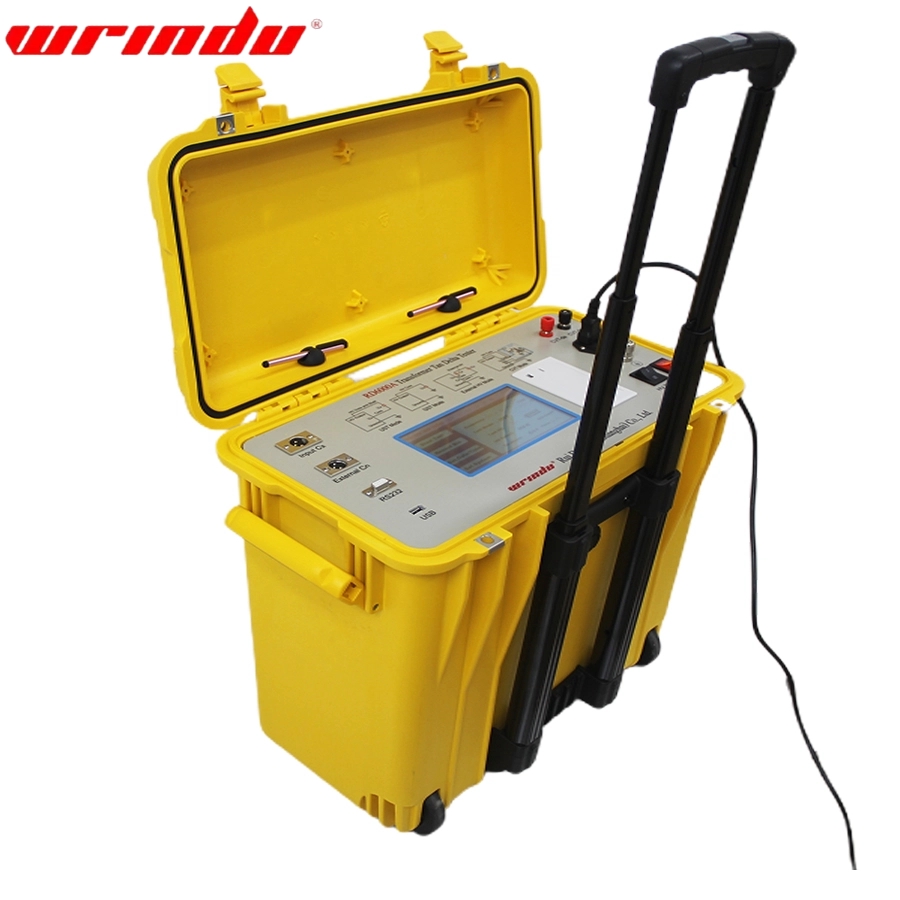

Wrindu emphasizes that Tan Delta testing should be conducted at every stage of the equipment lifecycle—manufacturing, commissioning, and scheduled maintenance—for preventive diagnostics. The company’s high-precision Tan Delta testers are engineered to meet ISO9001, IEC, and CE certifications, supporting global wholesale demand and OEM customization for China-based and international factories.
Customizable Tan Delta Solutions for OEM Partners
OEM partners can tailor Wrindu’s Tan Delta testing equipment with industry-specific features including multi-channel inputs, advanced data logging, and custom calibration—designed for factory testing lines and onsite diagnostics alike. The modular design of Wrindu’s testers enables flexible integration into existing workflows, saving time and costs for manufacturers while ensuring every piece of electrical equipment passes rigorous safety checks before global shipment.Expert Perspective from Wrindu Technology Team“Tan Delta testing remains the gold standard for insulation diagnostics, reflecting nuanced changes in insulation health invisible to other tests,” stated the Wrindu Technology Team. “At Wrindu, we emphasize precision and adaptability, ensuring our testers meet rigorous international standards to empower manufacturers across China. Our R&D investment focuses on delivering solutions that optimize factory workflows, minimize downtime, and support OEM customization—helping our clients succeed in a competitive global power testing market.”
Applications of Wrindu’s Tan Delta Testing Solutions
Wrindu’s Tan Delta testing solutions are applicable across the entire power system, from transformers and cables to bushings, circuit breakers, and rotating machinery, equipping energy transmission, manufacturing, and power generation industries with reliable tools for system safety and efficiency. The company’s guidance also confirms that timely maintenance—identified via Tan Delta testing—can extend the lifespan of aging electrical equipment, including oil-filled cables, reducing replacement costs and ensuring uninterrupted power flow.
About Wrindu
Wrindu is a trusted global OEM manufacturer and wholesale supplier of high-accuracy electrical insulation testing equipment, specializing in Tan Delta testers, DGA analyzers, and partial discharge testing solutions. With ISO9001, IEC, and CE certifications, the company delivers customizable, cost-effective testing equipment for international industrial clients, supporting rigorous quality control and preventive maintenance in power systems worldwide. Wrindu’s R&D focus on precision and adaptability ensures its solutions meet the evolving needs of OEM factories and wholesale markets, optimizing workflow efficiency and minimizing downtime for power industry stakeholders.
For more information, visit official website: www.wrindu.com / www.hvtesters.com
For technical blogs, visit official website: blog.wrindu.com
